Sale!

22,500.0027,500.00

It also contains improvised speed controller which provides very smooth drive & very efficient gearbox with no slip between two gears which means power transmitted from driving gear to driven gear has very little to no loss, which gives full power to shape their work. It also provide negligent energy lose, longer & maintenance free as well as can work in extreme temperature & high load with good amount of torque without loosing it’s efficiency.



Image Variation SKU Price Status Stock Quantity Add To Cart
0-160 RPM with Reverse & Forward - Clay Centering Load Capacity Upto 10 kg. - AC Rugged Single Phase Motor with Gear Box Elite Model 24,500.00 22,500.00 instock 2
Add to cart
0-160 RPM with Reverse & Forward - Clay Centering Load Capacity Upto 15 kg. - AC Rugged Single Phase Motor with Gear Box Elite X Model 27,500.00 instock 3
Add to cart

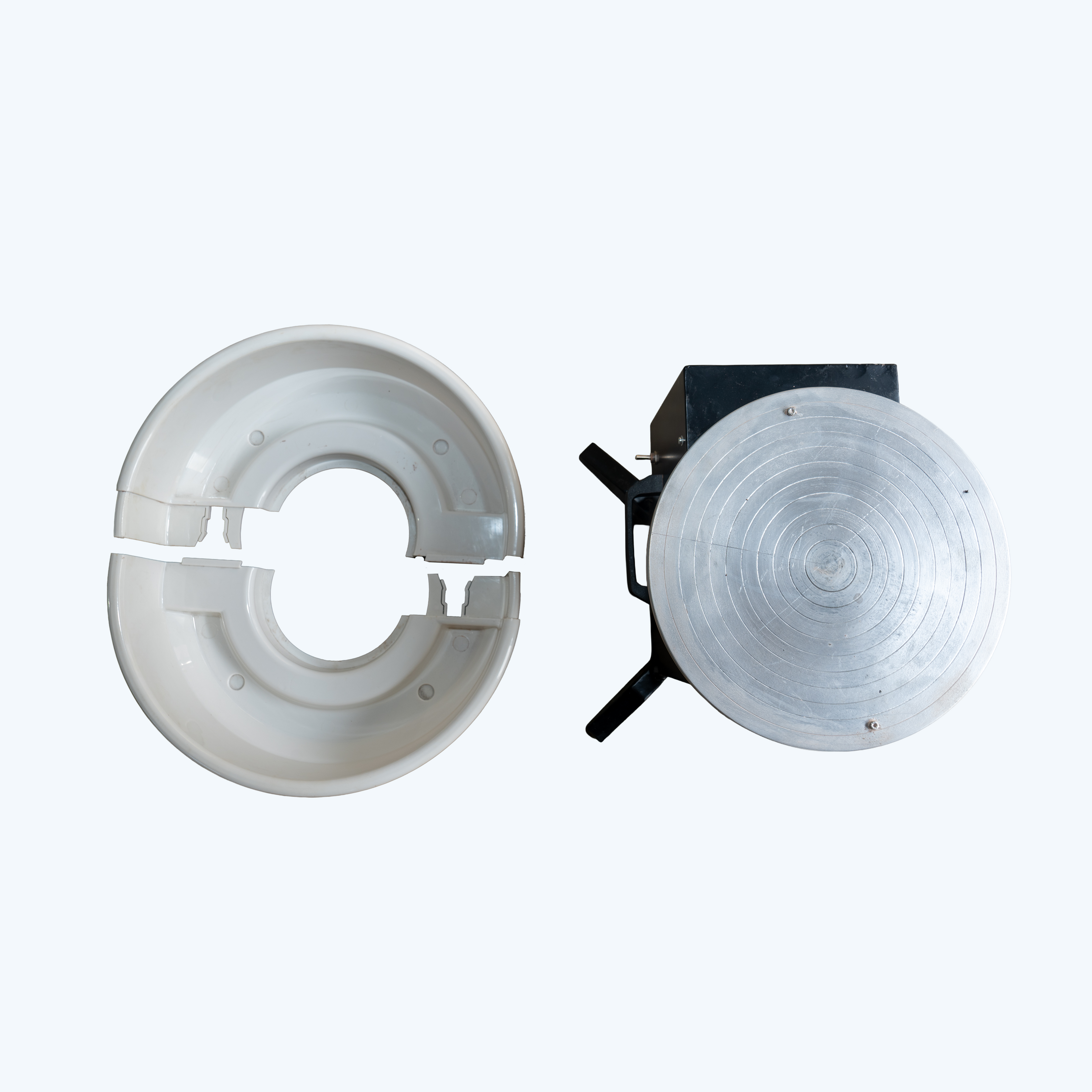

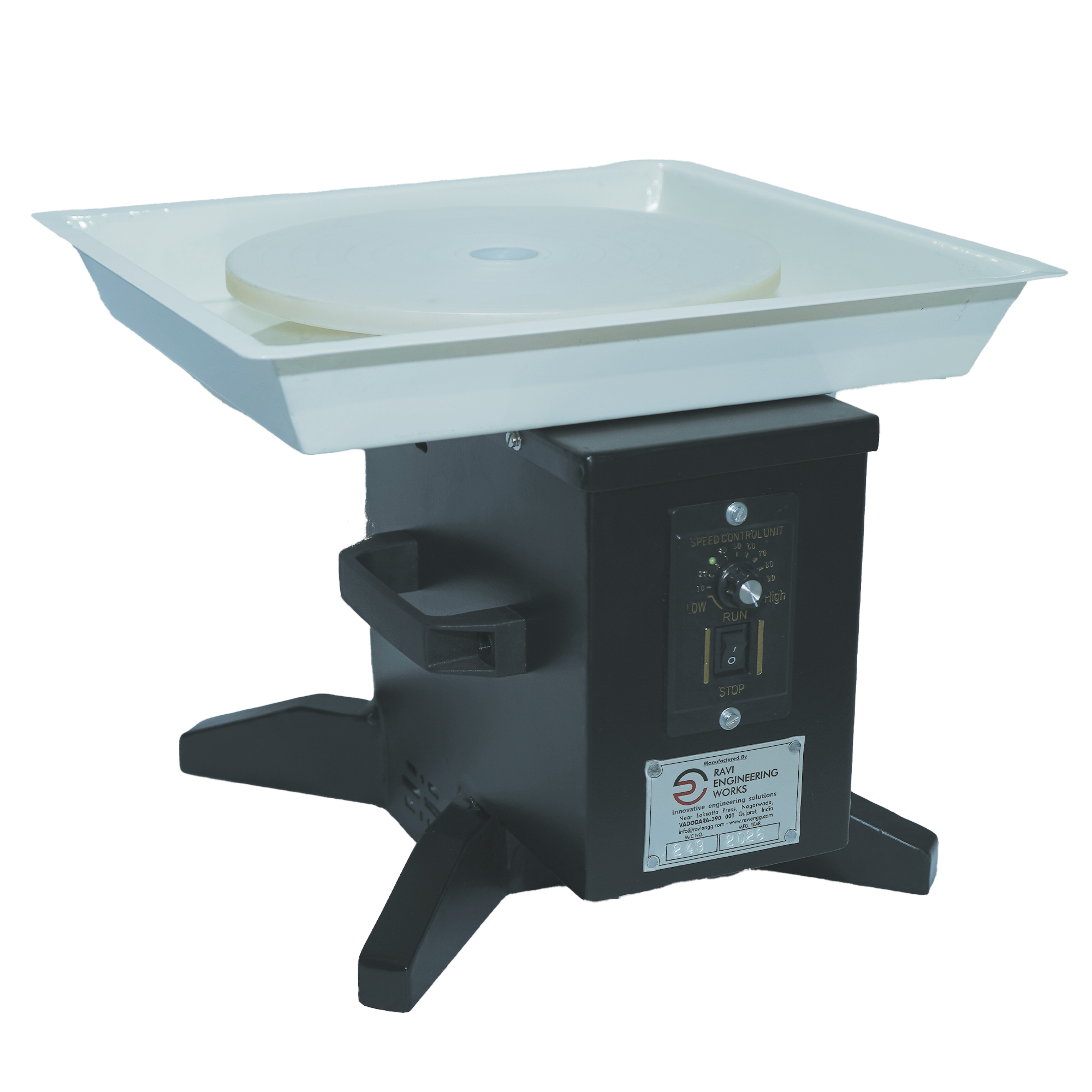

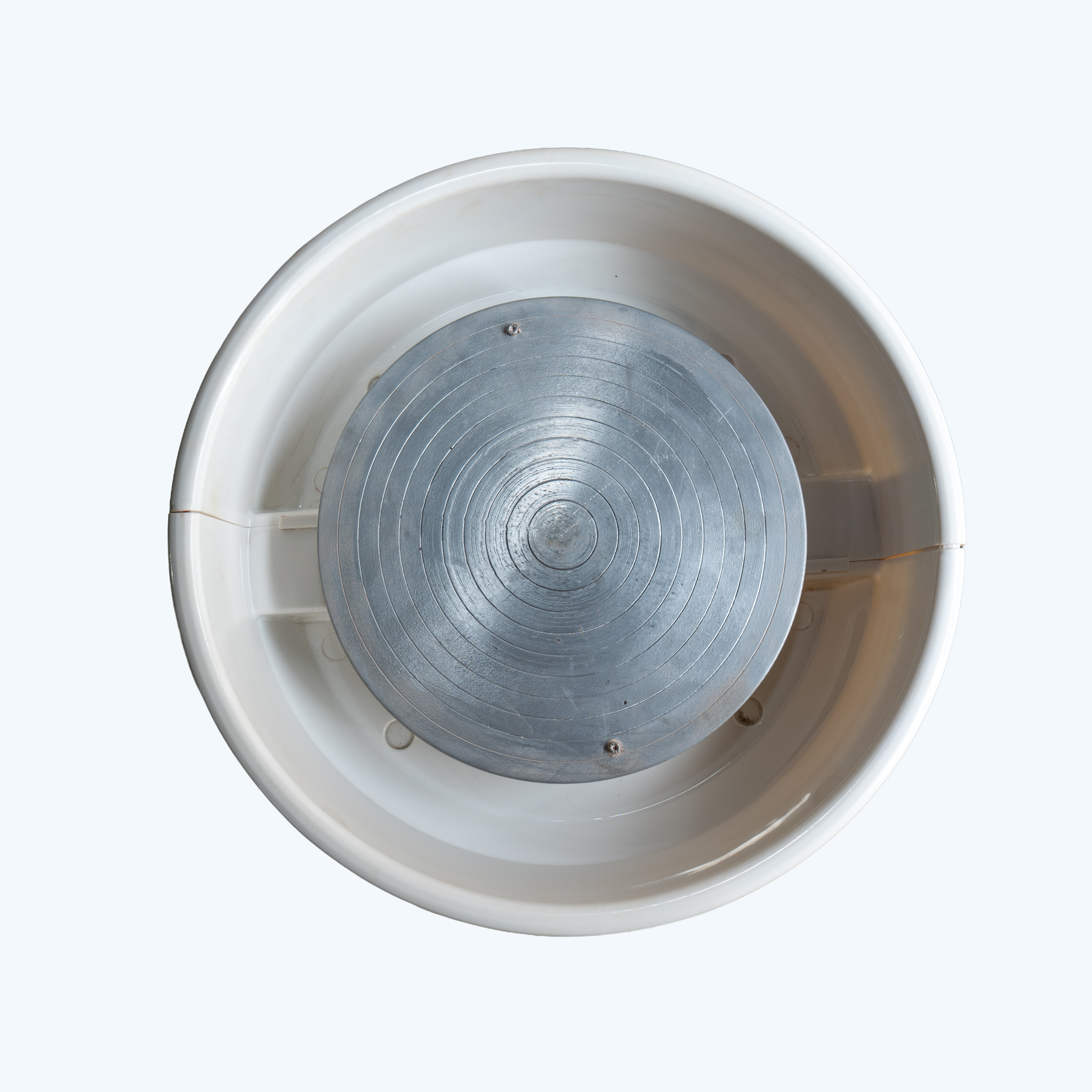

Elite Model  : 230 V Single Phase AC Electric Motor Direct Drive Fitted with Variable Speed Gear Reduction Box 300 mm Dia. Alu. Disc Removable FRP Splash Pan Tray Lifting Handles & Leveling Bolts Reverse-Forward Selector Knob 0-160 RPM Variable Hand Operated Controller Centering Clay Capacity : 8-10 kg. Weight : 14.4 Kg.

Elite X  : 230 V Single Phase AC Electric Motor Direct Drive Fitted with Variable Speed Gear Reduction Box 300 mm Dia. Alu. Disc Removable Fiber Splash Pan Tray Lifting Handles & Leveling Bolts Reverse-Forward Selector Switch 0-160 RPM Variable Hand Operated Controller Centering Clay Capacity: 12-15 Kg. Weight – 16.3 Kg.

Why Our Wheel ?

Introduce Elite Model for Ceramists, student’s, hobbyist & amateurs comes with the standard features like AC Motor which is very rugged & have a long life expectancy compare to any other motor. It also contains improvised speed controller which provides very smooth drive & very efficient gearbox with no slip between two gears which means power transmitted from driving gear to driven gear has very little to no loss, which gives full power to shape their work. It also provide negligent energy lose, longer & maintenance free as well as can work in extreme temperature & high load with good amount of torque without loosing it’s efficiency.

Additional information

Weight 25 kg
Variable Speed

0-160 RPM with Reverse & Forward, 0-200 RPM with Reverse & Forward, 0-250 RPM with Reverse & Forward

Clay Centering Load Capacity

Clay Centering Load Capacity Upto 6 kg., Clay Centering Load Capacity Upto 10 kg., Clay Centering Load Capacity Upto 15 kg.

Motor Type

AC Rugged Single Phase Motor with Gear Box
