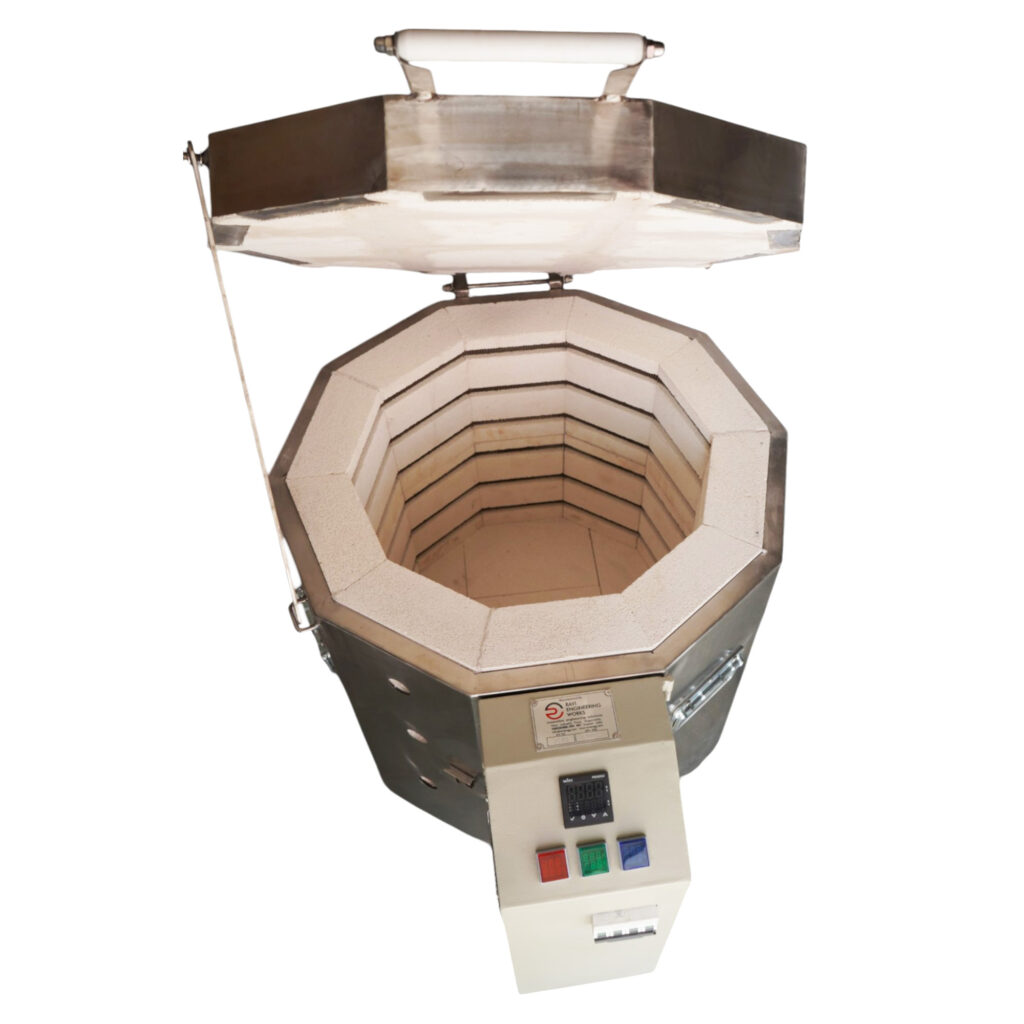

True Cone 10 Top Loading Kiln (Made in India ) for Potters/Ceramics.
State of Art Design (Easy to Handle )With Fully Stainless Steel Body & Lid.
Kiln Elements – Kanthal ( Made in Sweden )
4″ Double Wall Insulation Bricks (Specially Made for Pottery/Ceramic with High Refractoriness & Resistance)
Worlds Best Pottery Kiln Controller & Wirings for your Kiln
R Type Thermocouple to gives exact temperature in High Firing Ranges
Peep Holes with Plugs
Kiln Furniture : 1 kg Kiln Wash .
- For 13.5″ Opening & 13.5″ Depth – 3 Full Shelf & 3″,4″,6″ Posts -4 Nos. Each
- For 13.5″ Opening & 18″ Depth – 4 Full Shelf & 3″,4″,6″ Posts – 4 Nos. Each
- For 18″ Opening & 18″ Depth – 4 Full Shelf & 3″,4″, 5″ Posts – 6 Nos. Each
- For 18″ Opening & 22″ Depth – 5 Full Shelf & 3″,4″,6″ Posts – 6 Nos. Each
- For 18″ Opening & 27″ Depth – 6 Full Shelf & 3″, 4″,6″ Posts – 6 Nos. Each
- For 23″ Opening & 18″ Depth – 6 Half Shelf , 3″,4″,5″ Posts – 6 Nos. Each
- For 23″ Opening & 22″ Depth – 8 Half Shelf & 3″,4″,6″ Posts – 6 Nos. Each
- For 23″ Opening & 27″ Depth – 10 Half Shelf, 3″,4″,6″ Posts – 6 Nos. Each
- For 27″ Opening & 22″ Depth- 10 Half Shelf , 3″, 4″, 6″ Posts – 6 Nos. Each
- For 27″ Opening & 27″ Depth – 10 Half Shelf, 3″, 4″,6″ Posts – 6 Nos. Each
Why Our Kilns are best in Class ?
Our Top-loading electric kilns are generally less expensive to produce and to purchase because they don’t need to have a heavy metal frame to support a door and a tall base to support the kiln, and they have heating elements all around the walls which provide uniform heating. Loading from the top also provides a good view of the spacing between all the pots.
- Local Service Support by Video Calling Technical Support
- Provides Consistent results of Firings
- Low Energy Consumes
- Long Life of Elements
- Lower Prices as compared with Overseas Kilns
- Best Craftmanship & Quality of Work
- Easy to Maintain & Repair if requires
- Local Customer Support directly from Manufacturer
- World’s Proven Design adopted
For Kiln Setup Guidance or Firing Support: +91-9512436017 Prior to Appointment Only (48 hours prior ) Slot 1- 10.30 AM TO 11 AM & Slot 2 – 2.30 PM TO 3 PM , Monday to Friday except Festivals , Holiday etc…
For Electrical Maintenance or Support : +91-9227033247 Monday to Friday 10.30 AM TO 4.30 PM . Prior to Appointment on Phone Call.
Advise : To remove the corrosive fumes that come from the clay when it is heated, then with a top-loading kiln, at least the cover can be left open a little or Top Peep Hole to allow the fumes to escape without causing the whole kiln to cool off.
Above 4.5 KW Power requirement kilns recommend under 3 phase in India. (For Electrical guidance Contact us through phone/email. )
We always recommend 3 phase kilns in India due to Load Distribution.
Above Video is of “How to Run Bisque Firing under Selec IN 4 Keypad Controller.
Estimating Electric Kiln Firing Costs
A = Amperage rating from Indicator from Front of Control Panel
B = Voltage rating (if 220 or 240, use 230)
C = Firing time in hours (Considered as 50-60%) from Total Firing Time (Like 9.5 hrs then 4.75 hrs. consider)
D = Cost per kilowatt from your electric bill (if Rs.15,16,17 per unit cost usually in India or as actual from Electricity Bill)
| A X B 1000 |
X C | X D | 29 AMP X 230 V
______________ 1000 =6.67 X 4.75 Hrs. X Rs.15 = Rs.475 per firing cost of Cone 6 in 18”x18” Top Loading Electric Kiln (Given data is only for Approximation Cost) |
=Firing Cost |
Warranty :
The RAVI ENGINEERING WORKS warrants that the equipment supplied shall be free from defects in materials, workmanship, and manufacturing for a period of eighteen (18) months from the date of dispatch.
Scope of Warranty
During the warranty period, if any defect is proven to have arisen solely due to faulty design, manufacturing, or workmanship under normal and intended use, the manufacturer shall, at its sole discretion:
- Repair or replace the defective component(s) free of cost (ex-works)
- Provide technical guidance for rectification
This warranty is strictly limited to the repair or replacement of defective parts and does not extend to any other claims.
Exclusions from Warranty
This warranty does not cover the following items and conditions:
- Consumables & Wear Parts
- Heating elements
- Thermocouples
- Refractory materials including bricks, insulation, castables, ceramic fiber, and kiln furniture
- Operational & External Factors
- Damage due to improper installation, operation, or maintenance
- Overfiring, thermal shock, or exceeding rated temperature limits
- Voltage fluctuations, power surges, phase failure, or improper electrical supply
- Mechanical damage, mishandling, or accidents
- Use of non-recommended materials or improper loading practices
- Unauthorized Interference
- Any modification, repair, or alteration carried out without prior written approval from the manufacturer
Limitation of Liability
- The RAVI ENGINEERING WORKS’S liability under this warranty shall be strictly limited to the value of the defective component(s) supplied.
- The manufacturer shall not be liable for:
- Any indirect, incidental, or consequential damages
- Loss of production, profit, business, or downtime
- Any damage to goods, materials, or products processed in the kiln
Warranty Claim Procedure
- The customer must notify the manufacturer in writing immediately upon discovery of any defect.
- The manufacturer reserves the right to inspect the equipment or request supporting evidence before approving any claim.
- Defective parts, if required, must be returned at customer’s cost for evaluation.
General Conditions
- Warranty is valid only if full payment has been received as per agreed terms.
- Warranty is non-transferable and applicable only to the original purchaser.
